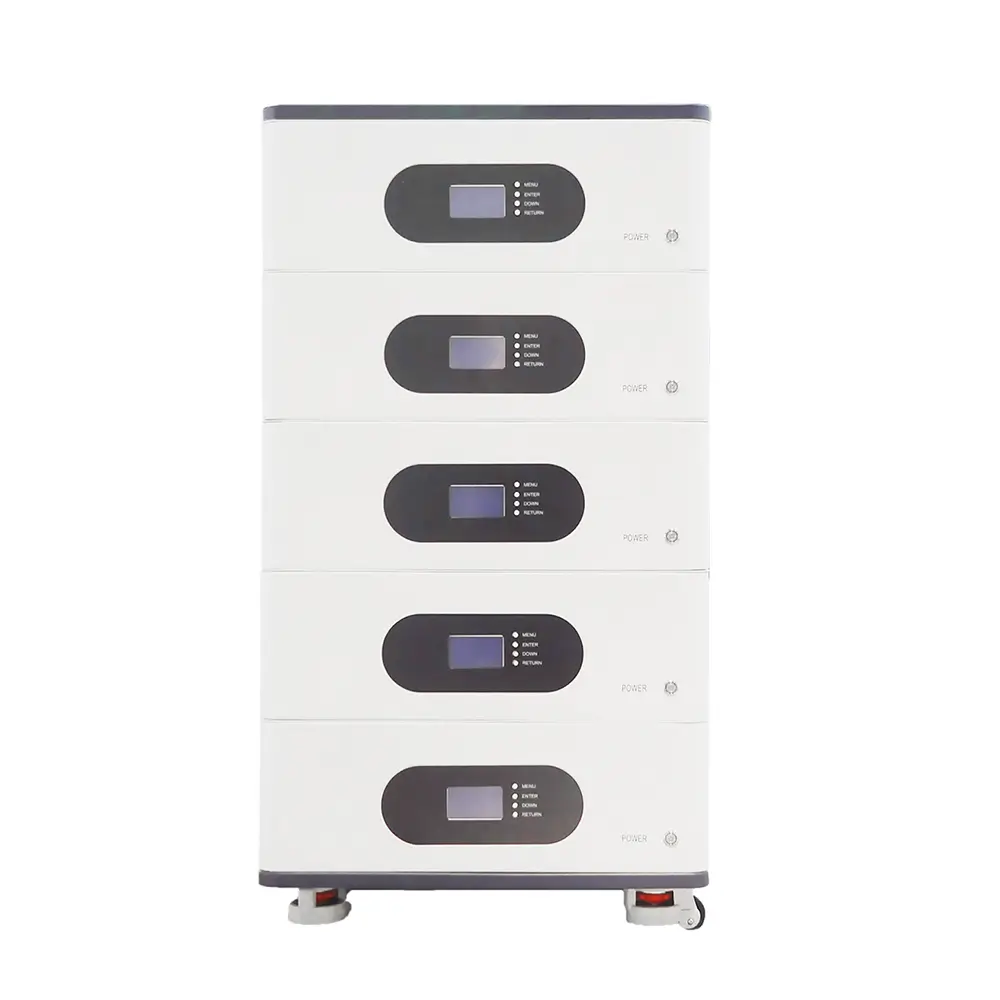

Stacked Energy Storage Lithium-ion Battery

Stacked Energy Storage Lithium-ion Batteries (48V 100-500Ah)

The Stacked Energy Storage Lithium-ion Battery series provides a reliable and scalable solution for energy storage. These batteries are ideal for residential, commercial, and industrial applications. Here are the detailed specifications and features of the series:

Specifications:

Specifications	5kWh	10kWh	15kWh	20kWh	25kWh
Model	LD-48100-CD01	LD-48100-CD02	LD-48100-CD03	LD-48100-CD04	LD-48100-CD05
Battery Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Nominal Voltage	48V	48V	48V	48V	48V
Battery Capacity (Ah)	100Ah	200Ah	300Ah	400Ah	500Ah
Usable Capacity (Wh)	4800Wh	9600Wh	14400Wh	19200Wh	24000Wh
Operating Voltage Range	39VDC – 54VDC	39VDC – 54VDC	39VDC – 54VDC	39VDC – 54VDC	39VDC – 54VDC
Max Discharge Current	100A	200A	200A	200A	200A
Max Charge Current	50A	100A	150A	200A	200A
Charge Temperature Range	0°C – 60°C	0°C – 60°C	0°C – 60°C	0°C – 60°C	0°C – 60°C
Discharge Temperature Range	-20°C – 60°C	-20°C – 60°C	-20°C – 60°C	-20°C – 60°C	-20°C – 60°C
Cycle Life @ 80% DoD	> 5000 cycles	> 5000 cycles	> 5000 cycles	> 5000 cycles	> 5000 cycles
Cycle Life @ 70% DoD	> 7000 cycles	> 7000 cycles	> 7000 cycles	> 7000 cycles	> 7000 cycles
Dimensions (W x D x H) (mm)	550 x 450 x 283	550 x 450 x 465	550 x 450 x 647	550 x 450 x 829	550 x 450 x 1011
Battery Weight (Kg)	56	106	156	206	256
IP Protection	IP51	IP51	IP51	IP51	IP51
Charging Under-temp Protection	0°C	0°C	0°C	0°C	0°C
Charging Over-temp Protection	55°C	55°C	55°C	55°C	55°C
Discharge Under-temp Protection	-20°C	-20°C	-20°C	-20°C	-20°C
Discharge Over-temp Protection	60°C	60°C	60°C	60°C	60°C
Self-discharge Rate	< 3% per month	< 3% per month	< 3% per month	< 3% per month	< 3% per month
Safety Certification	UN38.3 MSDS CE	UN38.3 MSDS CE	UN38.3 MSDS CE	UN38.3 MSDS CE	UN38.3 MSDS CE
Communication Port with Inverter	CAN or RS485	CAN or RS485	CAN or RS485	CAN or RS485	CAN or RS485

Key Features:

1. High Efficiency:

• The batteries offer high efficiency and reliability, ensuring consistent performance and minimal energy loss.

2. Advanced Battery Management System (BMS):

• The integrated BMS provides comprehensive protection, including overcharge, over-discharge, and temperature protections, ensuring optimal performance and longevity.

3. Long Cycle Life:

• Designed for longevity with over 5000 cycles at 80% Depth of Discharge (DoD) and over 7000 cycles at 70% DoD, providing long-term energy storage solutions.

4. Wide Operating Temperature Range:

• Capable of operating efficiently in a wide range of temperatures, from -20°C to 60°C.

5. IP51 Protection:

• Ensures protection against dust and limited ingress of liquids, suitable for various environments.

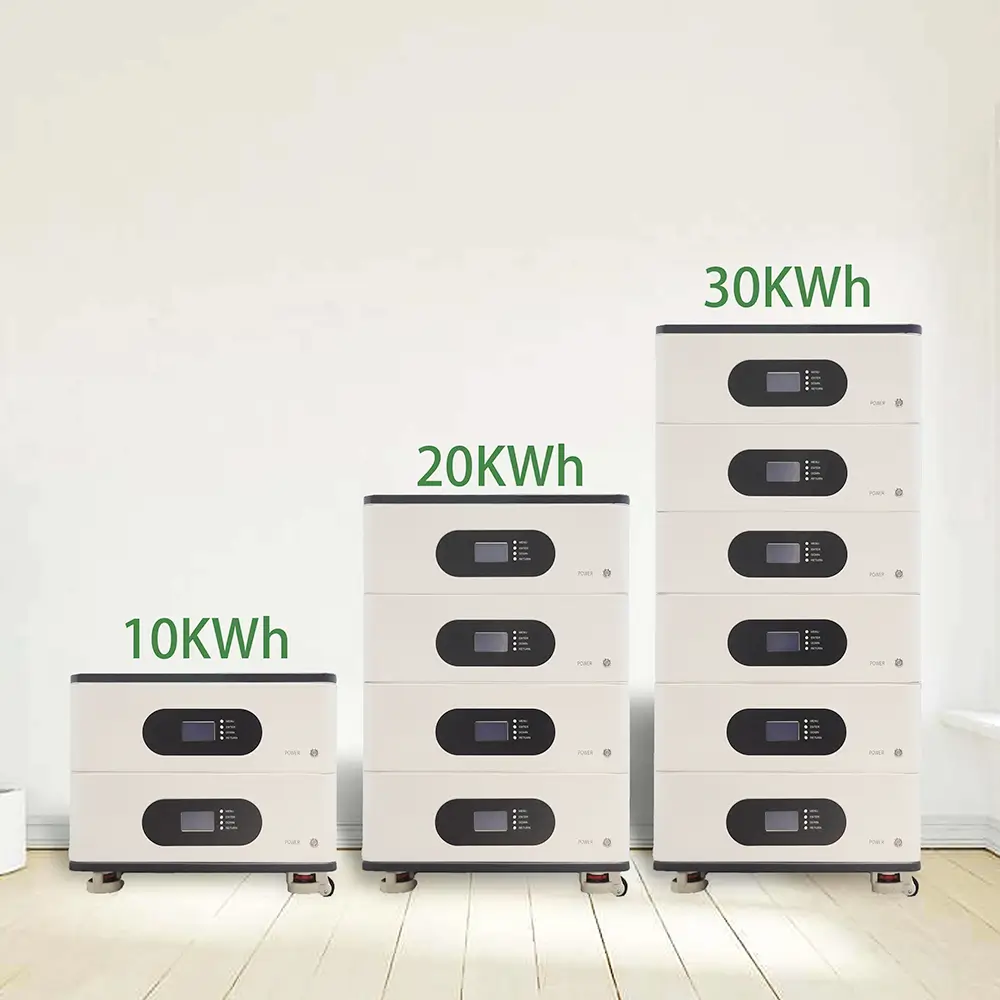

6. Scalable Design:

• The modular design allows for easy expansion by adding additional battery units, supporting up to 6-7 units.

7. Flexible Communication:

• Equipped with CAN or RS485 communication ports for seamless integration with inverters and energy management systems.

8. Safety Features:

• Comprehensive safety features including under-temperature and over-temperature protections for both charging and discharging cycles.

9. Compliance with International Standards:

• Certified to meet UN38.3 safety standards, ensuring high levels of safety and reliability.

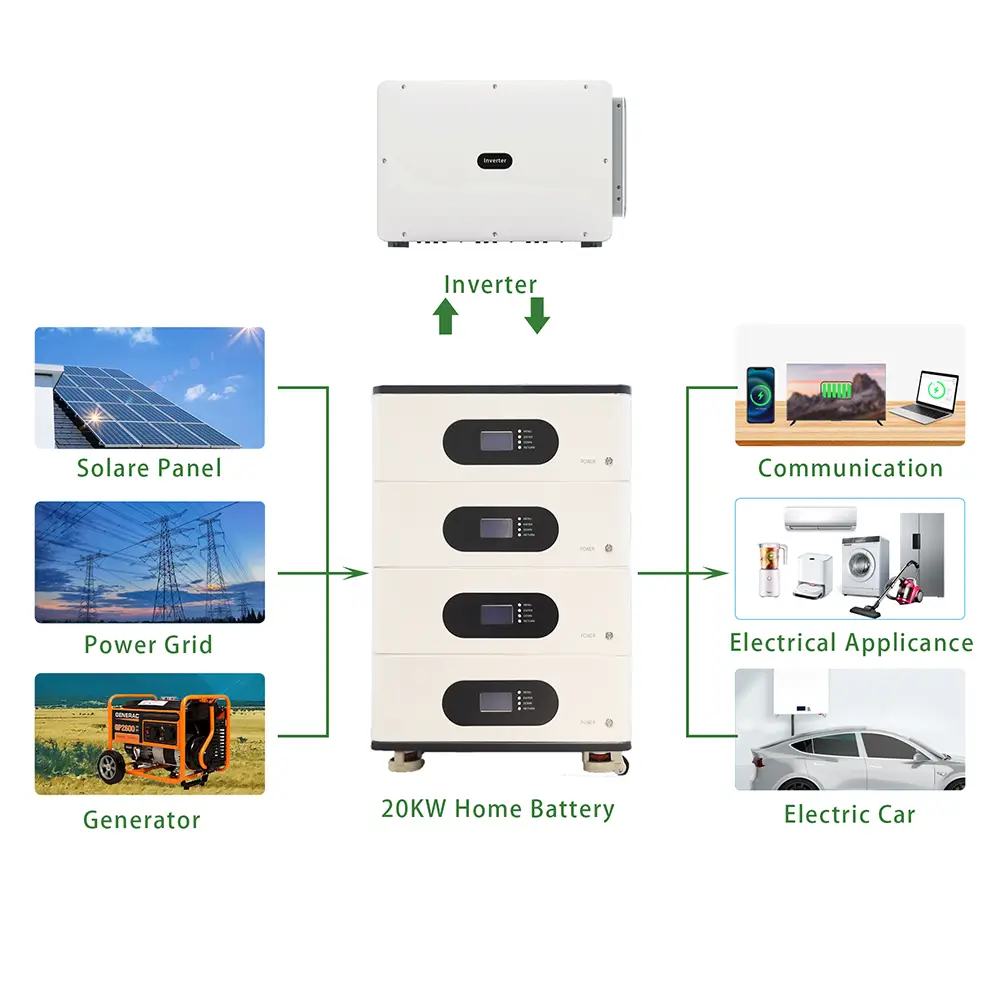

Applications:

• Residential Energy Storage: Efficiently stores energy from renewable sources such as solar panels for use during peak demand or power outages.
• Commercial Energy Storage: Provides reliable backup power and efficient energy management for businesses.
• Industrial Energy Storage: Supports high-demand industrial applications with a stable and reliable power supply.
• Grid Stabilization: Enhances grid reliability and stability by providing ancillary services such as frequency regulation and peak shaving.
• Renewable Energy Integration: Maximizes the use of renewable energy by storing excess energy and deploying it when needed.

Benefits:

• High Efficiency: Ensures minimal energy loss and high power output.
• Scalability: Easily expandable to meet growing energy demands with a modular design.
• Enhanced Safety: Advanced BMS and robust safety features ensure reliable and safe operation.
• Long-term Reliability: Provides a long cycle life, ensuring a sustainable and cost-effective energy storage solution.
• Environmental Impact: Promotes the use of renewable energy, reducing reliance on fossil fuels and lowering carbon footprint.

The Stacked Energy Storage Lithium-ion Battery series is an ideal solution for those seeking a reliable, scalable, and efficient energy storage system to enhance energy independence, improve efficiency, and ensure a stable power supply.
