Henan Liyue New Energy Co., Ltd

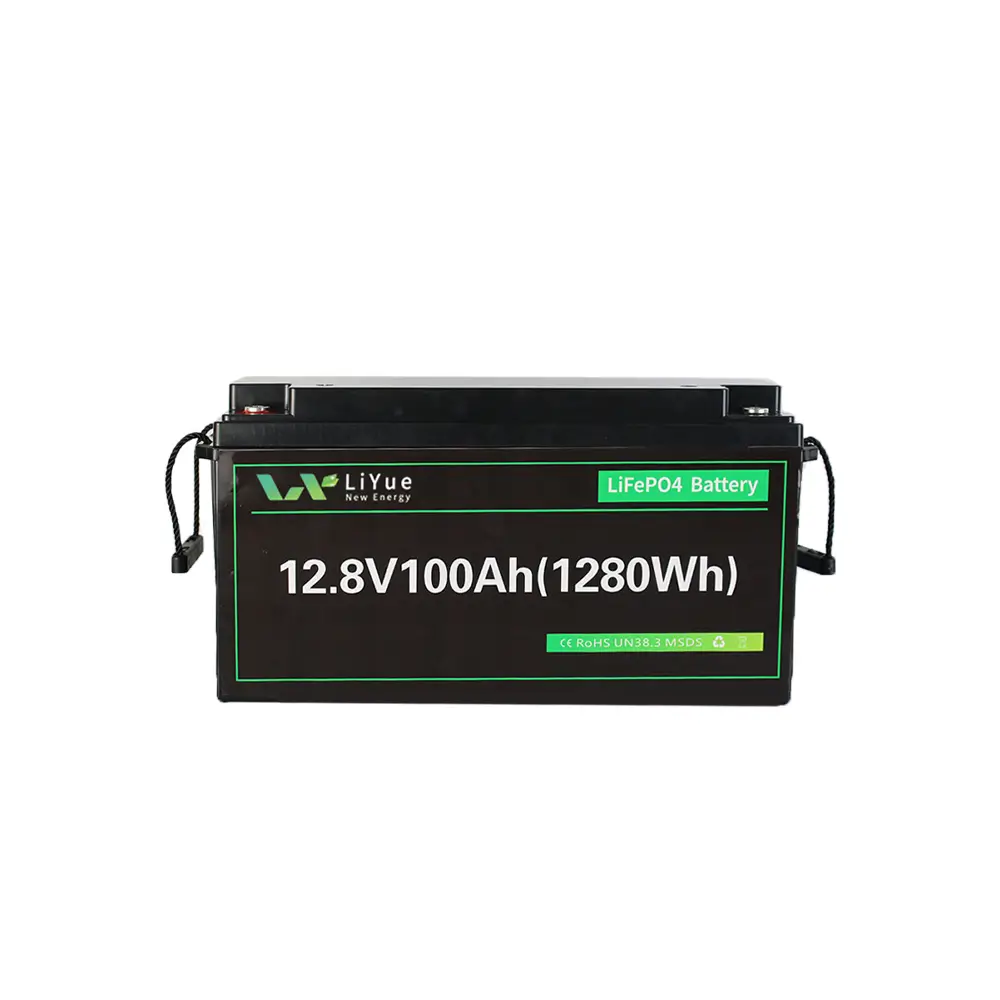

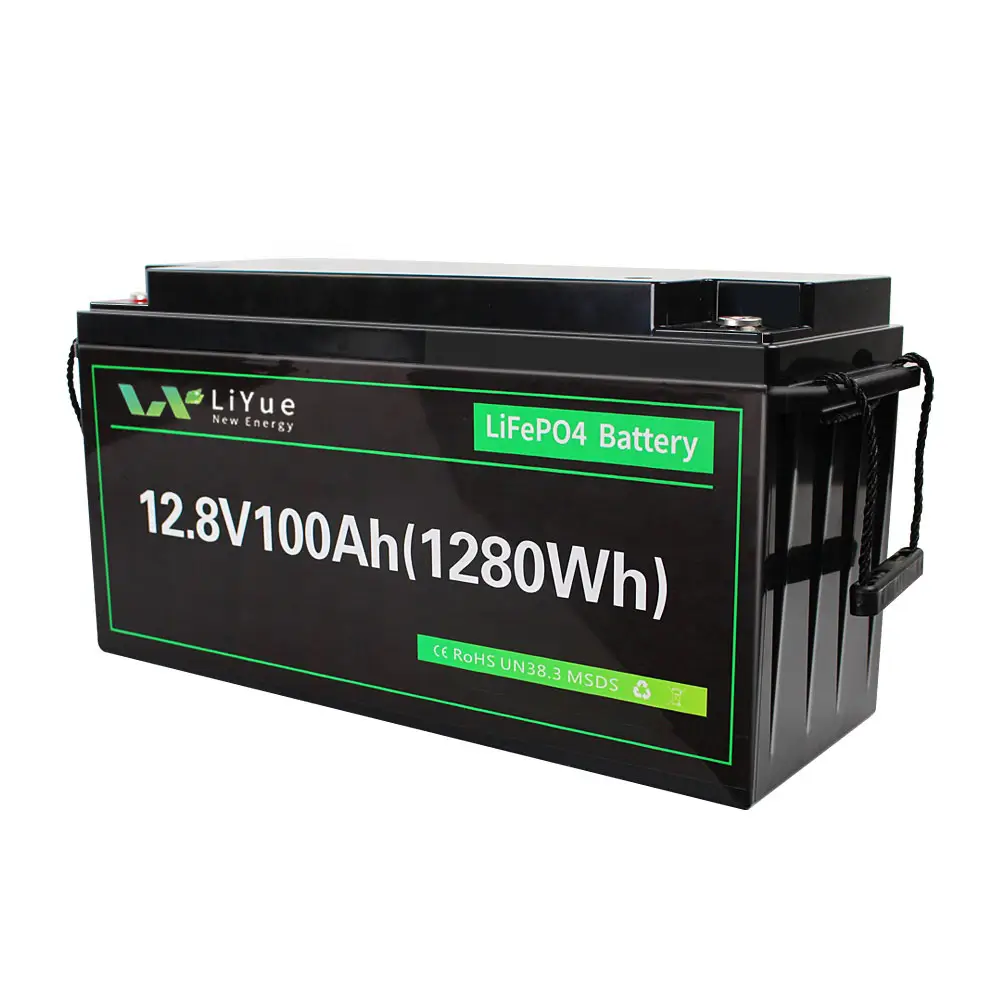

12.8V100Ah Lithium ion Battery
PRODUCT FEATURES
- Build-in smart BMS, with battery voltage, current, temperature and health management
- Support in series and parallel connection
- Bluetooth phone APP for battery monitoring
- High protection grade-IP65, easy to carry
- Standard VRLA battery case, can replace VRLA battery directly
Description
This is a high-performance 12V lithium-ion battery with a capacity of 12.8V 100Ah. Utilizing lithium iron phosphate (LiFePO4) technology, this battery offers exceptional safety, stability, and long life, making it ideal for a variety of applications. Key features of this battery include:
- High Energy Density: Compared to traditional lead-acid batteries, LiFePO4 batteries provide higher energy density, meaning they can store more energy in a smaller and lighter package.
- Long Lifespan: Boasting an extremely high cycle life of over 5000 charge and discharge cycles, this battery significantly outlasts lead-acid batteries.
- High Safety: LiFePO4 batteries are chemically stable, minimizing the risk of thermal runaway, explosions, or fires, ensuring higher safety.
- Fast Charging and Discharging: Supports high current fast charging and discharging, reducing charging time and enhancing convenience.
- Environmentally Friendly: Free of harmful heavy metals like lead and cadmium, these batteries meet environmental standards and are eco-friendly.
- Wide Operating Temperature Range: Capable of operating efficiently in temperatures ranging from -20°C to 60°C, making it suitable for various harsh environments.
This 12V LiFePO4 lithium-ion battery is ideal for solar energy storage systems, RVs, power tools, electric boats, emergency power supplies, and many other applications, making it the best choice for a high-efficiency power solution.
12.8V100Ah lithium ion battery Data Sheet:
Model/Parameters | EV-GLP12100 |
Rated Voltage | 12.8V |
Rated Capacity (0.2C,@25℃) | 100Ah |
Rated Energy | 1280Wh |
Material | LiFePO4 |
Operating voltage range | 10.0V~14.6V |
Dimension | L330*W172*H215mm |
Weight | 11kg |
Build in BMS | |
Over-charge protection | Cell>3.65V |
Over-discharge protection | Cell<2.6V |
Over-current protection Short circuit protection | Charging: >145A,delay 1.5s; Discharging: >310A, delay 400mS;Short circuit: >1500A |
Cell balance | Pulse, 250mA, 3.55V |
Over temperature protection | Charging: 65℃Discharging: 65℃ |
Case material | ABS |
Environment | |
Humidity | 5%~95% relative humidity |
Charging temperature | 0℃~40℃ |
Discharging temperature | -20℃~60℃ |
Storage temperature | 0℃~40℃ |
Service Life | |
Cycle life | 5000 times, @0.2C, 25℃, 80%DOD |
Design life | >10 years |
FAQs
Using lithium battery to replace lead acid battery, you need to consider capacity, power, and size requirements, as well as making sure you have the right charger.
On average Lithium-Ion batteries weight 5 times less than standard lead acid battery. Using life is 3-4 times longer than lead-acid batteries, without losing effectiveness over time.
Our LiFePO4 batteries have passed mandatory safety tests and have excellent chemical and mechanical structures. Safety performance tests include external short circuit tests, free fall, mechanical shock, high temperature, extrusion, overcharge, etc. The batteries do not catch fire or explode, greatly reducing the possibility of any harm. It is also worth mentioning that they are non-toxic, non-polluting, do not contain rare earth metals, and are environmentally conscious.
We suggest 80%DOD when using battery. When the battery capacity is less than 20% of the rated capacity, please charge it. This will help extend the using life. Charge temperature at 0-45℃ is good for battery.
For a battery pack, smart BMS is necessary and we will equipped with it. It has function of Over-charge, over-discharge, over-current, short circuit, high/low temperature control, cell balancing, etc.
First, you cannot use a lead-acid battery charger to charge a lithium battery. This will directly damage the battery. Second, when choosing a lithium battery charger, you need to match the battery voltage and charging current.
- One-year warranty for battery cells
- three-year warranty for power battery packs
- five-year warranty for energy storage battery packs
- We also provide humanized extended warranty services, and have professionals follow up the whole process.
