Henan Liyue New Energy Co., Ltd

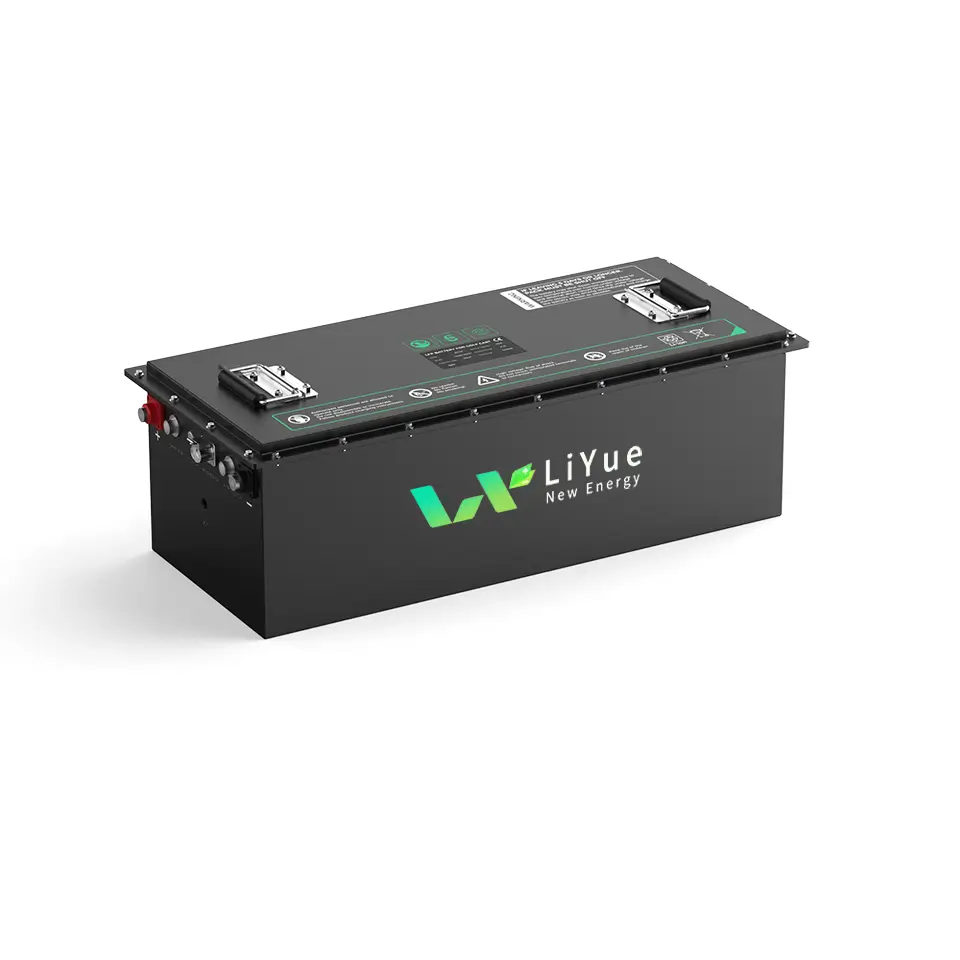

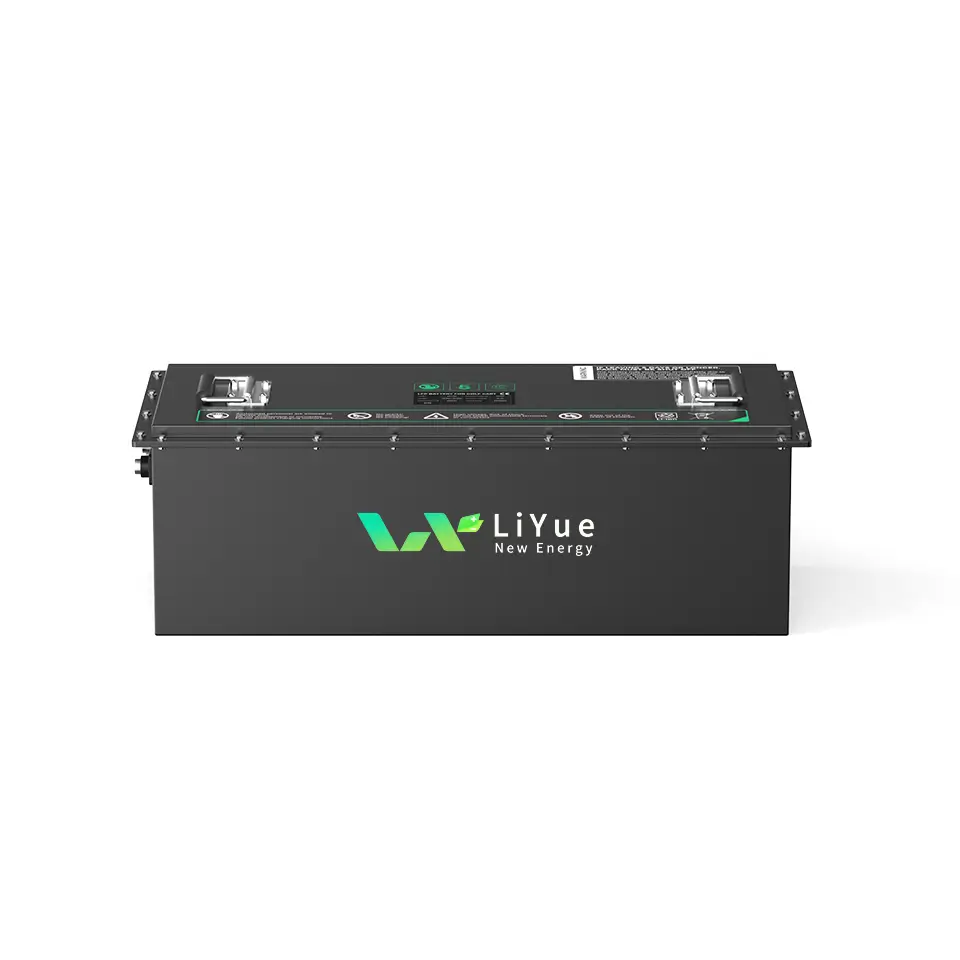

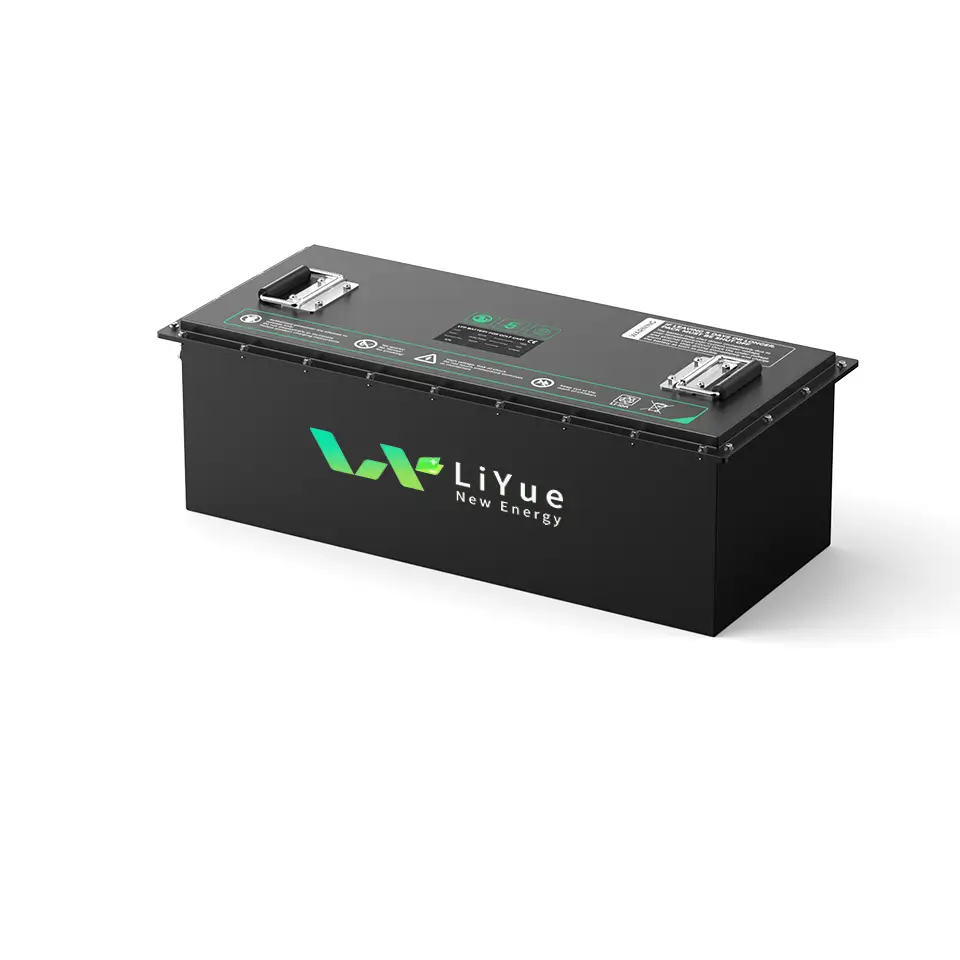

72V 100Ah Golf Cart Battery
PRODUCT FEATURES
Description
The 36V, 48V, and 72V power battery systems use car-grade cells. The highest performance battery can be used in a variety of vehicles and more application scenarios. Lithium iron phosphate chemistry, intelligent battery management system, and a solid design to ensure battery safety during use.
Packing list
- 1*76.8V100Ah LiFePO4 battery 7.68KWh
- 1*SOC meter, 5ft cable
- 1*72V 110V/220V DC 20A charger
- 2*M8 nuts & screws
- 1*Red & black 5ft cable, 25㎡
Designed for 72V application
- 72V GOLF CARTS
- EV UTVs & LSVs
- LEAD ACID REPLACEMENT
- INDUSTRIAL EQUIPMENT
- FORKLIFTS
- LIGHT TOWERS
- DIGITAL SIGNS
- EMERGENCY BACKUP
72V100Ah Power Battery Data Sheet:
| Item | |
| System voltage | 72V |
| Nominal Voltage: | 76.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 7.68kWh |
| Ah Capacity: | 100Ah |
| Charging Voltage Range: 55.6 – 58V | 62.4V ~ 87.6V |
| Max Continuous Discharge Current | 100A |
| Max Continuous Power: | 7680W |
| Max Discharge Peak Current | 400A (Max 5 seconds) |
| Max Continuous Charge Current | 50A |
| Charge Temperature Range: | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Size | 450mm x320mm x 280mm (L x W x H) |
| Weight | 62kg |
| Bluetooth | Yes |
FAQs
Can I replace lead-acid batteries with lithium batteries? What do I need to know?
How safe are Lithium-Ion Batteries?
How many years will my battery last?
When do I need charge battery?
What services are included in the after-sales service?
