Henan Liyue New Energy Co., Ltd

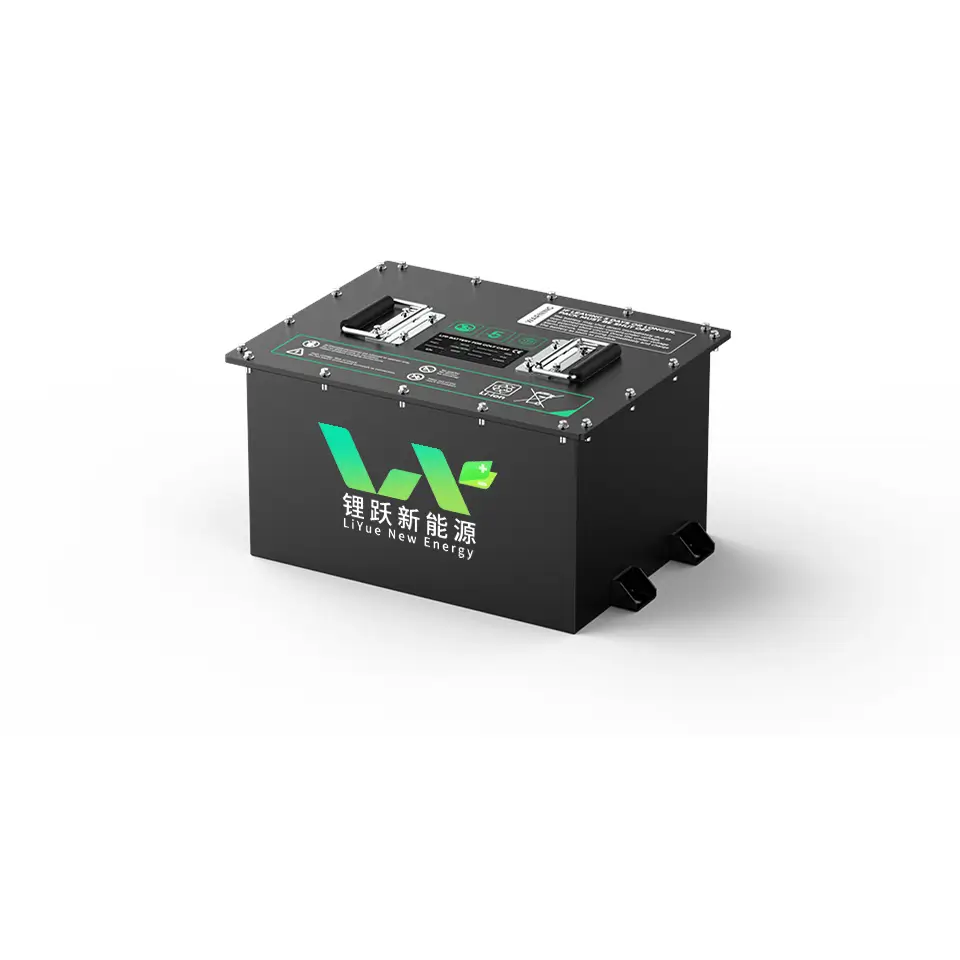

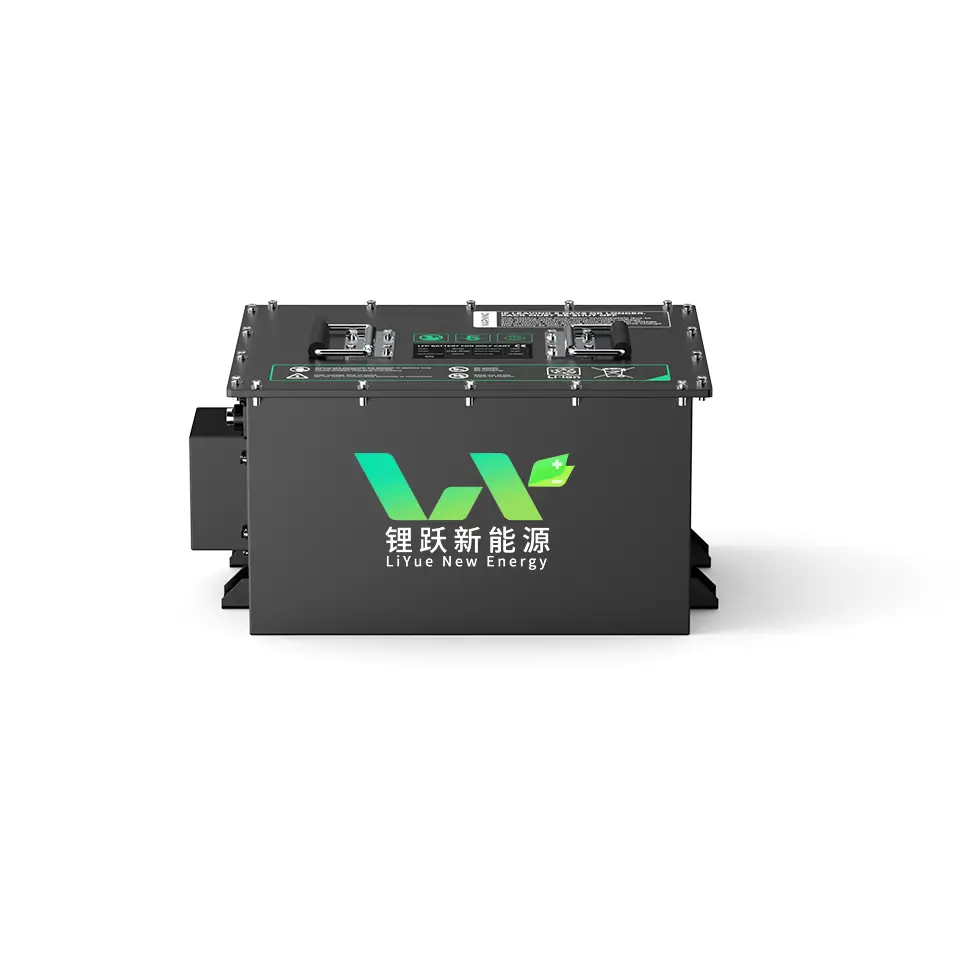

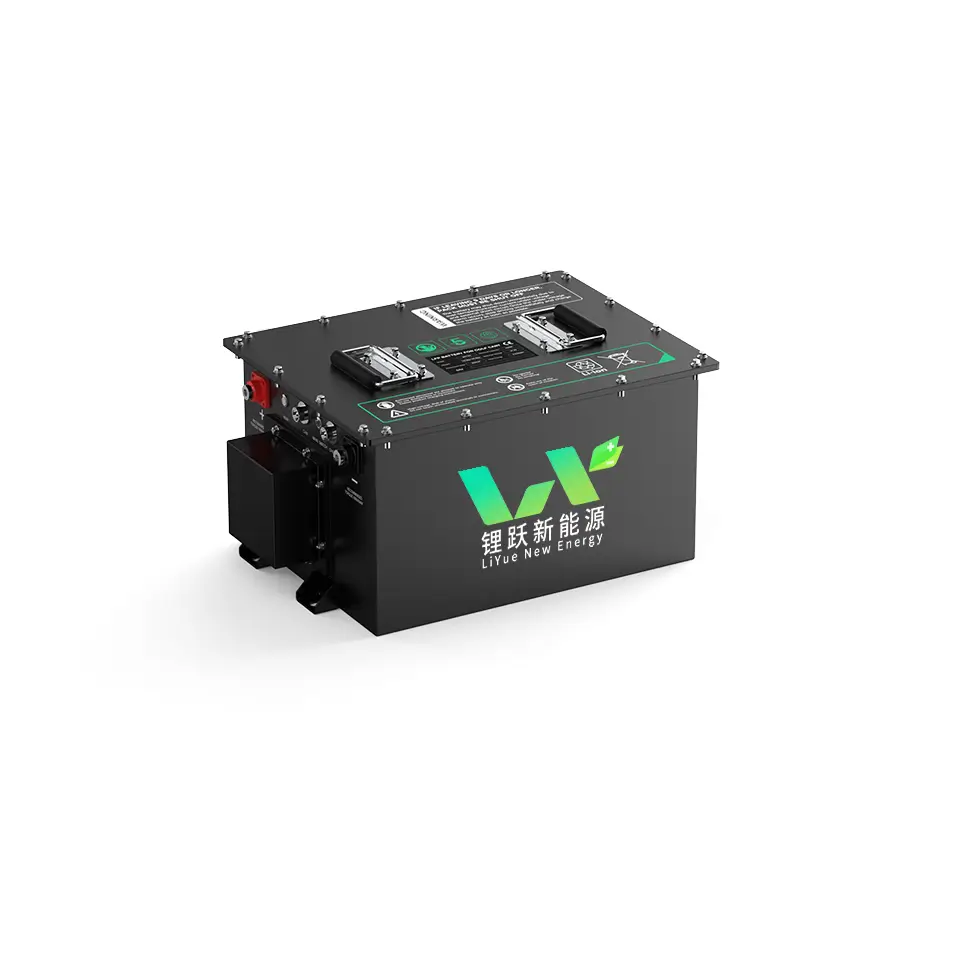

48V 200Ah Golf Cart Battery
PRODUCT FEATURES
Description
The 36V, 48V, and 72V power battery systems use car-grade cells. The highest performance battery can be used in a variety of vehicles and more application scenarios. Lithium iron phosphate chemistry, intelligent battery management system, and a solid design to ensure battery safety during use.
Packing list
- 1*48/51.2V 200Ah LiFePO4 battery 10.24KWh
- 1*SOC meter, 5ft cable
- 1*48V 110V/220V DC 40A charger
- 2*M8 nuts & screws
- 1*Red & black 5ft cable, 35㎡
Designed for 48V application
- GOLF CARTS
- UTILITY CARTS
- LEAD ACID UPGRADE
- MOBILE POWER
- EMERGENCY POWER
- COMPACT STORAGE
- CAMPER VANS
- RVS
48V200Ah Battery Data Sheet:
| Item | |
| System voltage | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 10.24kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: 55.6 – 58V | 41.6V ~ 58.4V |
| Max Continuous Discharge Current | 150A |
| Max Continuous Power: | 7680W |
| Max Discharge Peak Current | 550A (Max 5 seconds) |
| Max Continuous Charge Current | 75A |
| Charge Temperature Range: | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Size | 533 x 457x298mm (L x W x H) |
| Weight | 80kg |
| Bluetooth | Yes |
FAQs
Can I replace lead-acid batteries with lithium batteries? What do I need to know?
How safe are Lithium-Ion Batteries?
How many years will my battery last?
When do I need charge battery?
What services are included in the after-sales service?
